Threading Tiny Carbide Boring bar-lapisan G300 GI_R
Threading Tiny Carbide Boring bar-lapisan G300 GI_R
|

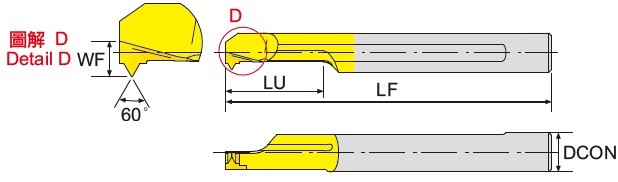

Model No |
DMIN |
WF |
DCON |
LF |
LU |
Screw Pitch (mm) |
Screw Pitch (TPI) |
|
GIR2L108A60 |
2.1 |
1 |
3 |
39 |
8 |
0.45-0.7 |
56-32 |
|
GIR3L115A60 |
3.2 |
1.4 |
3 |
39 |
15 |
0.7-1 |
32-24 |
|
GIR4L115A60 |
4.1 |
1.8 |
4 |
50 |
15 |
0.8-1 |
32-24 |
|
GIR5L115A60 |
5.1 |
2.3 |
5 |
50 |
15 |
1-1.25 |
24-20 |
|
GIR5L122A60 |
5.1 |
2.3 |
5 |
50 |
22 |
1-1.25 |
24-20 |
|
GIR6L115A60 |
6 |
2.6 |
6 |
50 |
15 |
1-1.5 |
24-16 |
|
GIR6L122A60 |
6 |
2.6 |
6 |
50 |
22 |
1-15 |
24-16 |
|
GIR8L122A60 |
8 |
3.6 |
8 |
60 |
22 |
1-2 |
24-13 |
