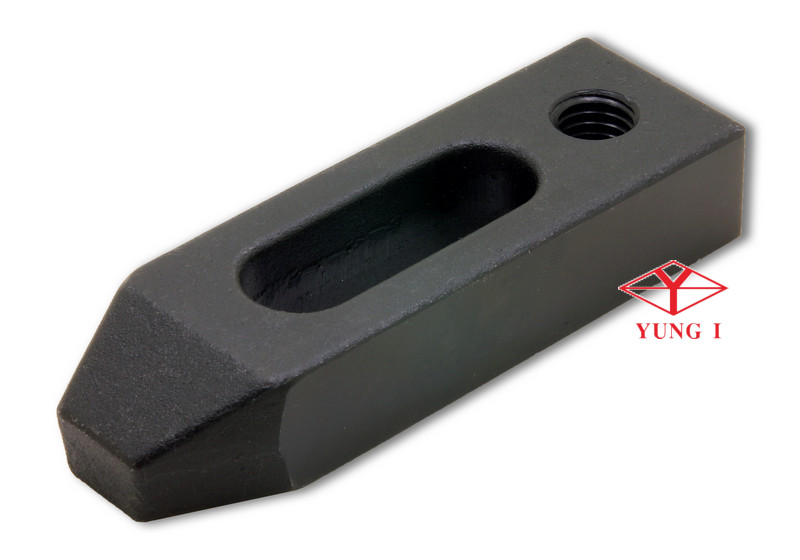

Penjepit yang disadap
CK-TCM Penjepit yang disadap
Tujuan: Gunakan lubang yang disadap untuk dihubungkan dengan tiang untuk memasang benda kerja.
Bahan: S45C, dilengkapi oksida hitam
Perlakuan panas: HRC32±5°
Spesifikasi produk:
I1/2S 1/2M 1/2L (Disadap M12, lebar slot 15mm)
5/8S 5/8M 5/8L (Mengetuk M16, lebar slot 18mm)
3/4S 3/4M 3/4L (Disadap M20, lebar slot 21mm)
|

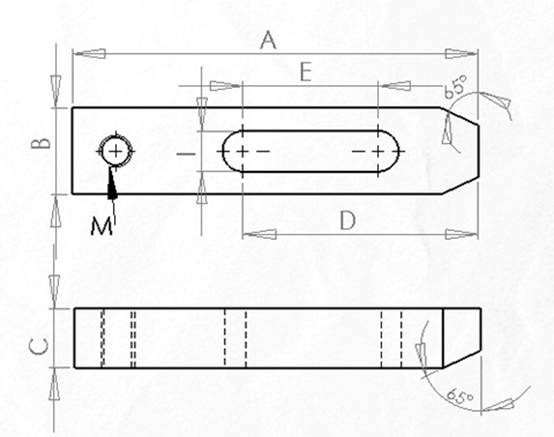

Order no. |
M( thread spec.) |
I(slot width) |
A |
B |
C |
D |
E |
F |
|
TCM-84041 |
M12X1.75 |
15 |
65 |
32 |
19 |
48 |
23 |
69 |
|
TCM-84042 |
M12X1.75 |
15 |
100 |
32 |
19 |
63 |
38 |
87 |
|
TCM-84043 |
M12X1.75 |
15 |
150 |
32 |
22 |
87 |
50 |
134 |
|
TCM-85051 |
M16X2.0 |
18 |
80 |
38 |
19 |
43 |
15 |
65 |
|
TCM-85052 |
M16X2.0 |
18 |
100 |
38 |
19 |
60 |
30 |
85 |
|
TCM-85053 |
M16X2.0 |
18 |
150 |
38 |
22 |
87 |
50 |
134 |
|
TCM-87071 |
M20X2.5 |
21 |
100 |
38 |
25 |
60 |
30 |
85 |
|
TCM-87072 |
M20X2.5 |
21 |
150 |
38 |
25 |
87 |
50 |
132 |
|
TCM-87073 |
M20X2.5 |
21 |
200 |
44.5 |
28.5 |
107 |
70 |
180 |
|
