BUBUT PRESISI KECEPATAN TINGGI seri S&M (wilayah Indonesia)

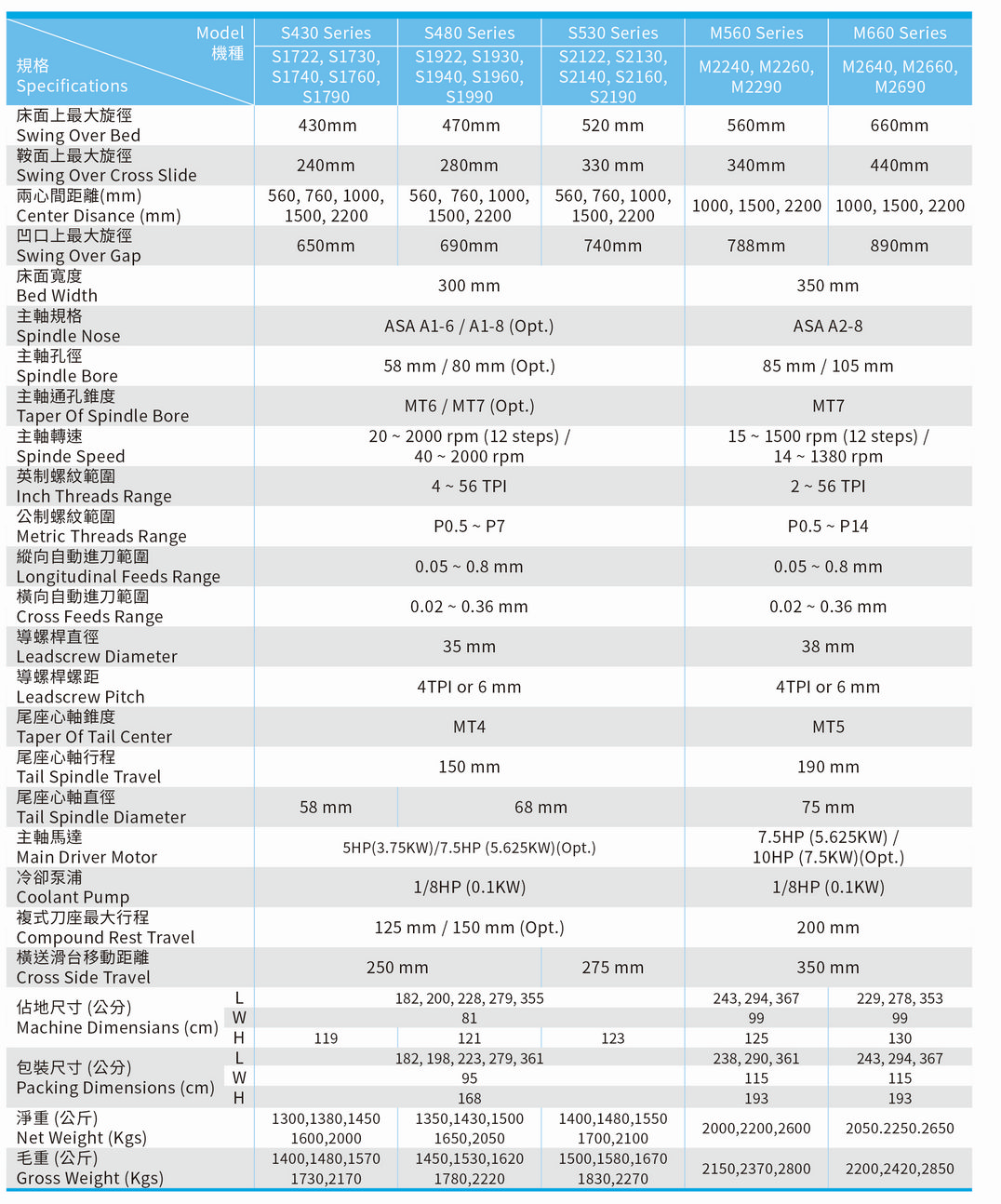

SPECIFICATIONS
S 430 SERIES
|
S430 Series |
|||||
|
Specifications / Model |
S1722 |
S1730 |
S1740 |
S1760 |
S1790 |
|
Swing Over Bed |
430 mm (17") |
||||
|
Swing Over Cross Slide |
240 mm (9-1/2") |
||||
|
Center Height |
215 mm (8-1/2") |
||||
|
Distance Between Centers |
560 mm (22") |
760 mm (30") |
1000 mm (40") |
1500 mm (60") |
2200 mm (90") |
|
Swing Over Gap |
650 mm (25-1/2") |
||||
|
Width Of Bed |
300 mm (11-4/5") |
||||
|
Spindle Nose |
ASA D1 - 6 / D1 - 8 ( Opt. ) |
||||
|
Spindle Bore |
58 mm (2-1/4") / 80 mm (3") Opt. ) |
||||
|
Taper of Spindle Bore |
MT 6 / MT 7 Opt. |
||||
|
Range of Spindle Speed |
20 ~ 2000 R.P.M. ( 12 steps )-spindle bore :58mm /40 ~ 2000 R.P.M. ( 12 steps )-spindle bore :80mm |
||||
|
Inch Threads Range |
4 ~ 56 T.P.I. |
||||
|
Metric Threads Range |
P 0.5 ~ P 7 |
||||
|
Longitudinal Feeds Range |
0.05 ~ 0.82 mm (0.002-0.032") |
||||
|
Cross Feeds Range |
0.02 ~ 0.4 mm (0.001-0.0094") |
||||
|
Leadscrew Diameter |
35 mm (1-1/3") |
||||
|
Leadscrew Pitch |
4 TPI or 6 mm |
||||
|
Taper of Tail Center |
MT 4 |
||||
|
Tail Spindle Travel |
150 mm (5-7/8") |
||||
|
Tail Spindle Diameter |
58 mm (2-1/4") |
||||
|
Main Drive Motor |
5HP (3.75KW) / 7.5HP (5.625KW) ( Opt. ) |
||||
|
Coolant Pump |
1/8 HP (0.1KW) |
||||
|
Compound Rest Travel |
125 mm (4-7/8") |
||||
|
Cross Slide Travel |
245 mm (9-2/3") |
||||
|
Machine Dimensions (cm) |
165 x 81 x 119 |
189 x 81 x 119 |
215 x 81 x 119 |
265 x 81 x 119 |
342 x 81 x 119 |
|
Packing Dimension (cm) |
182 x 95 x 168 |
200 x 95 x 168 |
228 x 95 x 168 |
279 x 95 x 168 |
355 x 95 x 168 |
|
Net Weight |
1500 |
1680 |
1760 |
2050 |
2405 |
|
Gross Weight |
1600 |
1780 |
1860 |
2200 |
2555 |

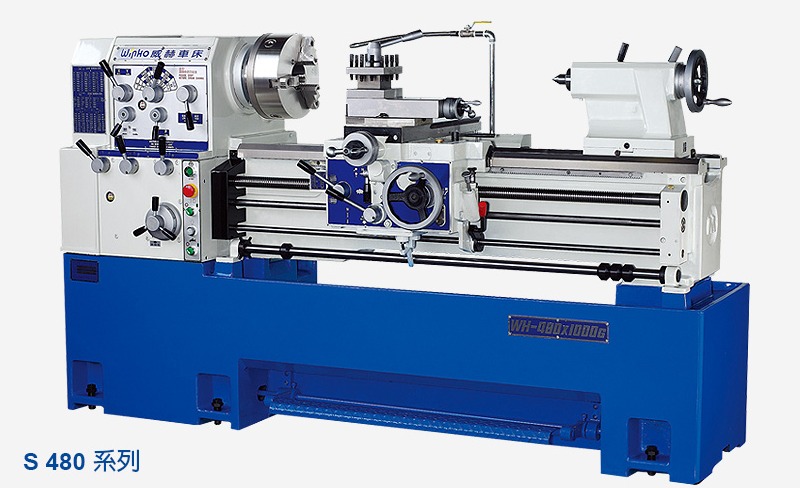

S 480 SERIES
|
S480 Series |
|||||
|
Specifications / Model |
S1922 |
S1930 |
S1940 |
S1960 |
S1990 |
|
Swing Over Bed |
470 mm (18-1/2") |
||||
|
Swing Over Cross Slide |
280 mm (11") |
||||
|
Center Height |
235 mm (9-1/4") |
||||
|
Distance Between Centers |
560 mm (22") |
760 mm (30") |
1000 mm (40") |
1500 mm (60") |
2200 mm (90") |
|
Swing Over Gap |
690 mm (27-1/8") |
||||
|
Width Of Bed |
300 mm (11-4/5") |
||||
|
Spindle Nose |
ASA D1 - 6 / D1 - 8 ( Opt. ) |
||||
|
Spindle Bore |
58 mm (2-1/4") / 80 mm (3") Opt. ) |
||||
|
Taper of Spindle Bore |
MT 6 / MT 7 Opt. |
||||
|
Range of Spindle Speed |
20 ~ 2000 R.P.M. ( 12 steps )-spindle bore :58mm /40 ~ 2000 R.P.M. ( 12 steps )-spindle bore :80mm |
||||
|
Inch Threads Range |
4 ~ 56 T.P.I. |
||||
|
Metric Threads Range |
P 0.5 ~ P 7 |
||||
|
Longitudinal Feeds Range |
0.05 ~ 0.82 mm (0.002-0.032") |
||||
|
Cross Feeds Range |
0.02 ~ 0.4 mm (0.001-0.0094") |
||||
|
Leadscrew Diameter |
35 mm (1-1/3") |
||||
|
Leadscrew Pitch |
4 TPI or 6 mm |
||||
|
Taper of Tail Center |
MT 4 |
||||
|
Tail Spindle Travel |
150 mm (5-7/8") |
||||
|
Tail Spindle Diameter |
68 mm (2-2/3") |
||||
|
Main Drive Motor |
7.5HP (5.625KW) / 10HP (7.5KW) ( Opt. ) |
||||
|
Coolant Pump |
1/8 HP (0.1KW) |
||||
|
Compound Rest Travel |
125 mm (4-7/8") |
||||
|
Cross Slide Travel |
245 mm (9-2/3") |
||||
|
Machine Dimensions (cm) |
165 x 81 x 122 |
189 x 81 x 122 |
215 x 81 x 122 |
265 x 81 x 122 |
342 x 81 x 122 |
|
Packing Dimension (cm) |
182 x 95 x 168 |
200 x 95 x 168 |
228 x 95 x 168 |
279 x 95 x 168 |
355 x 95 x 168 |
|
Net Weight |
1540 |
1720 |
1800 |
2075 |
2465 |
|
Gross Weight |
1640 |
1820 |
1900 |
2225 |
2615 |
S 530 SERIES
|
S530 Series |
|||||
|
Specifications / Model |
S2122 |
S2130 |
S2140 |
S2160 |
S2190 |
|
Swing Over Bed |
520 mm (20-1/2") |
||||
|
Swing Over Cross Slide |
330 mm (13") |
||||
|
Center Height |
260 mm (10-1/4") |
||||
|
Distance Between Centers |
560 mm (22") |
760 mm (30") |
1000 mm (40") |
1500 mm (60") |
2200 mm (90") |
|
Swing Over Gap |
740 mm (29-1/8") |
||||
|
Width Of Bed |
300 mm (11-4/5") |
||||
|
Spindle Nose |
ASA D1 - 8 |
||||
|
Spindle Bore |
80 mm (3") |
||||
|
Taper of Spindle Bore |
MT 7 |
||||
|
Range of Spindle Speed |
20 ~ 2000 R.P.M. ( 12 steps )-spindle bore :58mm /40 ~ 2000 R.P.M. ( 12 steps )-spindle bore :80mm |
||||
|
Inch Threads Range |
4 ~ 56 T.P.I. |
||||
|
Metric Threads Range |
P 0.5 ~ P 7 |
||||
|
Longitudinal Feeds Range |
0.05 ~ 0.82 mm (0.002-0.032") |
||||
|
Cross Feeds Range |
0.02 ~ 0.4 mm (0.001-0.0094") |
||||
|
Leadscrew Diameter |
35 mm (1-1/3") |
||||
|
Leadscrew Pitch |
4 TPI or 6 mm |
||||
|
Taper of Tail Center |
MT 4 |
||||
|
Tail Spindle Travel |
150 mm (5-7/8") |
||||
|
Tail Spindle Diameter |
68 mm (2-2/3") |
||||
|
Main Drive Motor |
7.5HP (5.625KW) / 10HP (7.5KW) ( Opt. ) |
||||
|
Coolant Pump |
1/8 HP (0.1KW) |
||||
|
Compound Rest Travel |
125 mm (4-7/8") |
||||
|
Cross Slide Travel |
275 mm (10-4/5") |
||||
|
Machine Dimensions (cm) |
165 x 81 x 125 |
189 x 81 x 125 |
215 x 81 x 125 |
265 x 81 x 125 |
342 x 81 x 125 |
|
Packing Dimension (cm) |
182 x 95 x 168 |
200 x 95 x 168 |
228 x 95 x 168 |
279 x 95 x 168 |
355 x 95 x 168 |
|
Net Weight |
1580 |
1760 |
1810 |
2135 |
2565 |
|
Gross Weight |
1680 |
1860 |
1910 |
2285 |
2675 |
M 560 SERIES
|
M560 Series |
|||
|
Specifications / Model |
M2240 |
M2260 |
M2290 |
|
Swing Over Bed |
560 mm (22") |
||
|
Swing Over Cross Slide |
340 mm (13-1/3") |
||
|
Center Height |
280 mm (11") |
||
|
Distance Between Centers |
1000 mm (40") |
1500 mm (60") |
2200 mm (90") |
|
Swing Over Gap |
788 mm (31") |
||
|
Width Of Bed |
350 mm (13-3/4") |
||
|
Spindle Nose |
ASA D1 - 8 |
||
|
Spindle Bore |
85 mm (3-1/3") / 105 mm (4") Opt. ) |
||
|
Taper of Spindle Bore |
MT 7 |
||
|
Range of Spindle Speed |
15 ~ 1500 R.P.M. / 14 ~ 1380 R.P.M. ( 12 steps ) |
||
|
Inch Threads Range |
2 ~ 56 T.P.I. |
||
|
Metric Threads Range |
P 0.5 ~ P 14 |
||
|
Longitudinal Feeds Range |
0.05 ~ 0.82 mm (0.002-0.032") |
||
|
Cross Feeds Range |
0.02 ~ 0.4 mm (0.001-0.0094") |
||
|
Leadscrew Diameter |
38 mm (1-1/2") |
||
|
Leadscrew Pitch |
4 TPI or 6 mm |
||
|
Taper of Tail Center |
MT 5 |
||
|
Tail Spindle Travel |
165 mm (6-1/2") |
||
|
Tail Spindle Diameter |
75 mm (2-7/8") |
||
|
Main Drive Motor |
7.5HP (5.625KW) / 10HP (7.5KW) ( Opt. ) |
||
|
Coolant Pump |
1/8 HP (0.1KW) |
||
|
Compound Rest Travel |
200 mm (7-7/8") |
||
|
Cross Slide Travel |
300 mm (11-4/5") |
||
|
Machine Dimensions (cm) |
229 x 99 x 125 |
278 x 99 x 125 |
353 x 99 x 125 |
|
Packing Dimension (cm) |
238 x 115 x 70 |
290 x 115 x 70 |
361 x 115 x 70 |
|
Net Weight |
2200 |
2400 |
2750 |
|
Gross Weight |
2350 |
2550 |
2900 |
