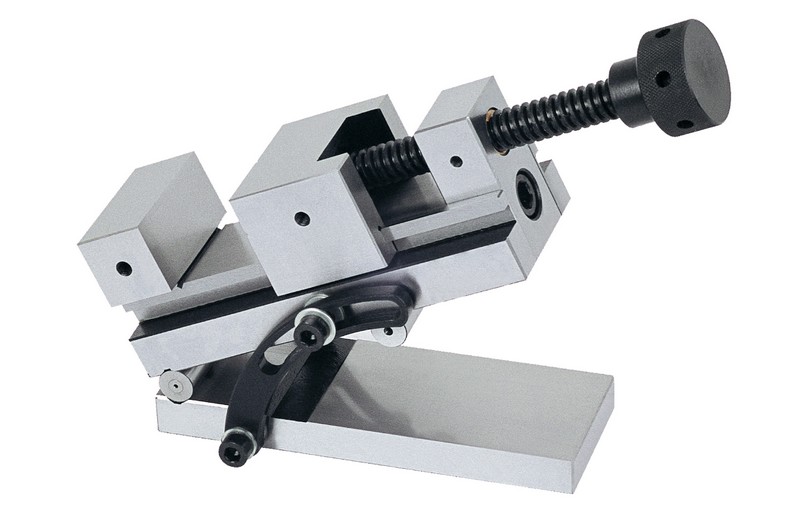

CATOK SINUS TIPE SEKRUP - V-Z
CATOK SINUS TIPE SEKRUP - V-Z
KELIPATAN: 0,005 MM / 100 MM
TEGAK LURUS: 0,005 MM / 100 MM
|

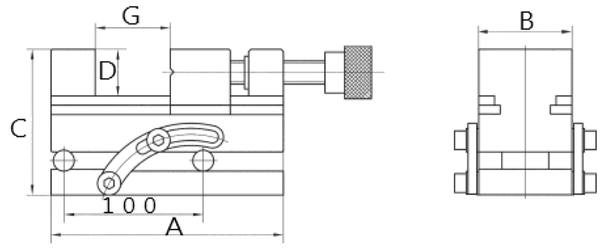

MODEL |
A |
B |
C |
D |
G |
HARDNESS |
KG |
|
V200-Z |
140 |
50 |
86.6 |
25 |
60 |
HRC58~62 |
4.4 |
|
V250-Z |
175 |
63 |
94.6 |
32 |
85 |
6.5 |
|
|
V300-Z |
190 |
73 |
111 |
35 |
90 |
9.6 |
|
MODEL |
A |
B |
C |
D |
G |
HARDNESS |
KG |
|
V200-Z |
140 |
50 |
86.6 |
25 |
60 |
HRC58~62 |
4.4 |
|
V250-Z |
175 |
63 |
94.6 |
32 |
85 |
6.5 |
|
|
V300-Z |
190 |
73 |
111 |
35 |
90 |
9.6 |
