Rahang lunak untuk chuck tenaga hidrolik
Rahang lunak untuk chuck tenaga hidrolik

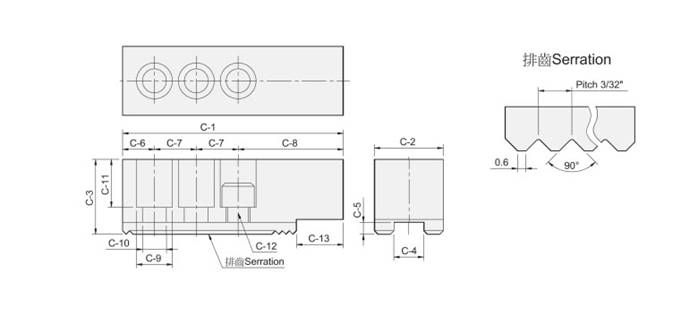

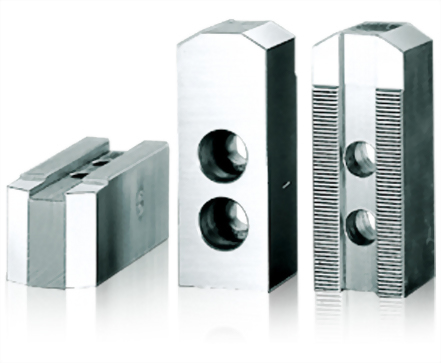

l Rahang lunak untuk chuck tenaga hidrolik.

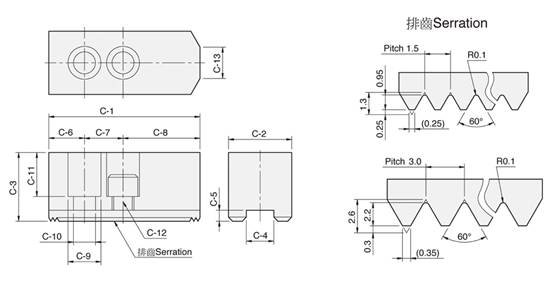

l Rahang lunak untuk mesin bubut CNC.
|
DIM |
C-1 |
C-2 |
C-3 |
C-4 |
C-5 |
C-6 |
C-7 |
C-8 |
C-9 |
C-10 |
C-11 |
C-12 |
C-13 |
Serration |
Matching |
3 Jaw |
|
HC04 |
53 |
23 |
23 |
10 |
5 |
9 |
14 |
30 |
14 |
9 |
14 |
M8 |
30 |
1.5x60° |
N-204 |
0.45 |
|
HC05 |
62 |
25 |
30 |
10 |
5 |
9 |
14 |
39 |
14 |
9 |
21 |
M8 |
5 |
1.5x60° |
N-205 |
0.7 |
|
HC06 |
73 |
31 |
36 |
12 |
5 |
15 |
20 |
38 |
17 |
11 |
21 |
M10 |
14 |
1.5x60° |
N-206, NB-306, V-206 |
1.5 |
|
HC08 |
95 |
35 |
37 |
14 |
5 |
24 |
25 |
46 |
19 |
13 |
22 |
M12 |
16 |
1.5x60° |
N-208, NB-208, V-208 |
2.4 |
|
HC10 |
110 |
40 |
42 |
16 |
5 |
30 |
30 |
50 |
19 |
13 |
27 |
M12 |
18 |
1.5x60° |
N-210, NB-210, V-210 |
3.7 |
|
HC12 |
130 |
50 |
50 |
21 |
5 |
39 |
30 |
61 |
25 |
17 |
33 |
M16 |
23 |
1.5x60° |
N-212, NB-212 |
6.5 |
|
HC15 |
165 |
62 |
62 |
22 |
8 |
37 |
43 |
85 |
32 |
21 |
38 |
M20 |
– |
1.5x60° |
N-215, N-218, NB-215, NB-218 |
12.5 |
|
HC08-1 |
95 |
35 |
37 |
12 |
5 |
24 |
20 |
51 |
17 |
11 |
21 |
M10 |
14 |
1.5x60° |
NHT-208 |
2.4 |
|
HC12-1 |
130 |
50 |
50 |
18 |
5 |
39 |
30 |
61 |
23 |
15 |
30 |
M14 |
23 |
1.5x60° |
V-212, V-212R |
6.6 |
|
HC15-1 |
165 |
62 |
62 |
25.5 |
5 |
37 |
43 |
85 |
32 |
21 |
38 |
M20 |
– |
1.5x60° |
V-215, V-218, V-215R, V-218R |
12.5 |
|
HC24-1 |
180 |
64 |
70 |
25 |
9 |
40 |
60 |
80 |
32 |
21 |
45 |
M20 |
– |
3.0x60° |
N-220, N-224, V-221, V-224,V-221R,V-224R |
15.8 |
|
HC32-1 |
210 |
74 |
90 |
25 |
9 |
40 |
80 |
90 |
32 |
21 |
65 |
M20 |
– |
3.0x60° |
V-232 |
29.2 |
|
HC15-2 |
156 |
64 |
70 |
26 |
9 |
34 |
50 |
72 |
32 |
21 |
45 |
M20 |
– |
3.0x60° |
V-215(P3.0).V-218(P3.0). |
13.4 |
Soft jaw for draw down power chuck
|
DIM |
C-1 |
C-2 |
C-3 |
C-4 |
C-5 |
C-6 |
C-7 |
C-8 |
C-9 |
C-10 |
C-11 |
C-12 |
C-13 |
Matching |
3 Jaw |
Reference |
|
DR-06 |
70 |
35 |
34 |
10 |
6 |
43 |
– |
10 |
23 |
15.5 |
21 |
M14 |
2.5 |
DR-6 |
1.5 |

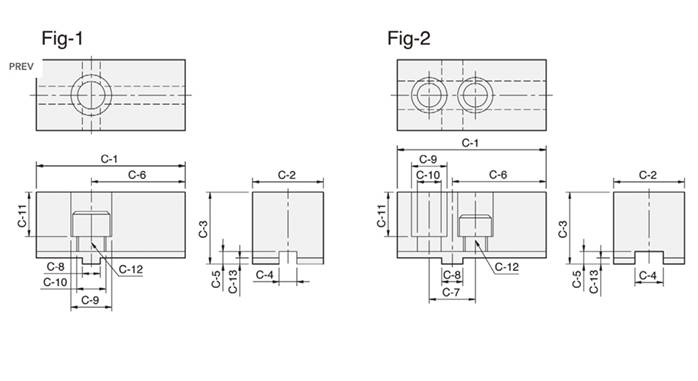

Fig-1 |
|
DR-08 |
84 |
40 |
44.5 |
16 |
7 |
53 |
26 |
12 |
20 |
13.5 |
29 |
M12 |
3.5 |
DR-8 |
2.7 |
Fig-2 |
Soft jaw for ball swing lock chuck
|
DIM |
C-1 |
C-2 |
C-3 |
C-4 |
C-5 |
C-6 |
C-7 |
C-9 |
C-10 |
C-11 |
C-12 |
Matching |
3 Jaw |
|
BL-12 |
108 |
70 |
70 |
57.1 |
3.3 |
19 |
44.45 |
25 |
17 |
59 |
M16 |
BL-12 |
10.6 |
Soft jaw for pneumatic power chuck
|
DIM |
C-1 |
C-2 |
C-3 |
C-4 |
C-5 |
C-6 |
C-7 |
C-8 |
C-9 |
C-10 |
C-11 |
C-12 |
C-13 |
Matching Chuck |
3 Jaw Weight (kg) |
|
PB600 |
205 |
60 |
60 |
25.5 |
6 |
25 |
38 |
104 |
32 |
21 |
44 |
M20 |
55 |
PB-ES600 |
13.5 |
|
PB850 |
320 |
80 |
80 |
30 |
7 |
35 |
60 |
165 |
38 |
26 |
53 |
M24 |
110.5 |
PB-ES850 |
40.2 |
